應用
ISO 6743-4中除HFDR、HFD S和HFDT以外的,溫度范圍在-40℃~+125℃的液壓流體;
溫度范圍在-40℃~+90℃的水性流體;
溫度范圍在0℃~+90℃范圍內的水。
執行標準
膠管執行GB/T 3683標準的SN/ATS型,符合DIN EN853 SN 型、ISO 1436 SN/ATS型,也符合SAE J517
100RIAT/1OOR2AT型標準要求。
外觀
外表黑色,有光面(608)或布紋1608W。
Application
Hydraulic fluid within -40℃~+125℃, except HFD R, HFD S and HFD T under SO 6743-4;
Aqueous fluid wihin-40℃~+90℃;
Water wihin 0℃~+90℃.
Applicable Standards
Rubber hose according to standard GB/T3683 SN/ATS, DIN EN853 SN,ISO 1436 SN/ATS and SAE J517100RIAT/IOOR2AT.
Appearance
Visuadlly black with polish1608) or wove patiern1608WI.

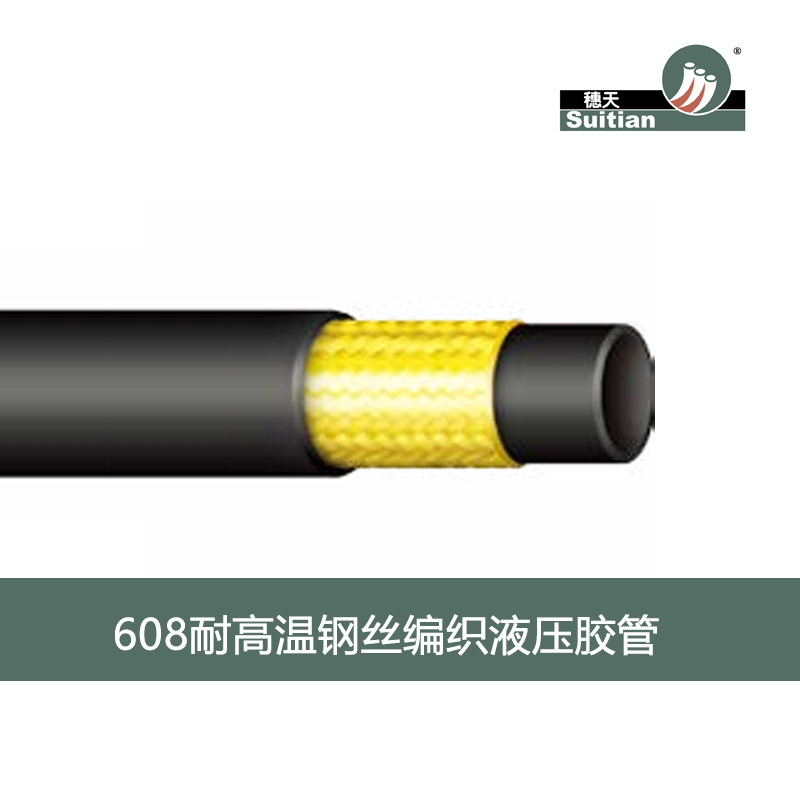

一層鋼絲-結構特性
膠管由耐油耐高溫的內膠層、一層鋼絲編織增強層、耐高溫耐天候性優良的外膠層組成。
Structural Characteristics
The rubber hose consists of heat and oll resistant inner layer, one layer of steel wire braided reinforcement, heat resistant andweatherproof outer layer.
兩層鋼絲-結構特性
膠管由耐油耐高溫的內膠層、二層鋼絲編織增強層、耐高溫耐天候的外膠層組成。
Structural Characteristics
The rubber hose consists of heat and oll resistant inner layer, two layers of steel wire braided reinforcement, heat resistant and weatherproof outer layer.
